Bathroom grab bars: Where to put them and what to check

It can be hard to judge whether a grab bar will help your parent just by looking at the package.

Bathroom grab bars belong where a person needs support when sitting, standing or bathing. Placement depends on their movements and reach; safe mounting depends on the complete installation and the manufacturer’s instructions.

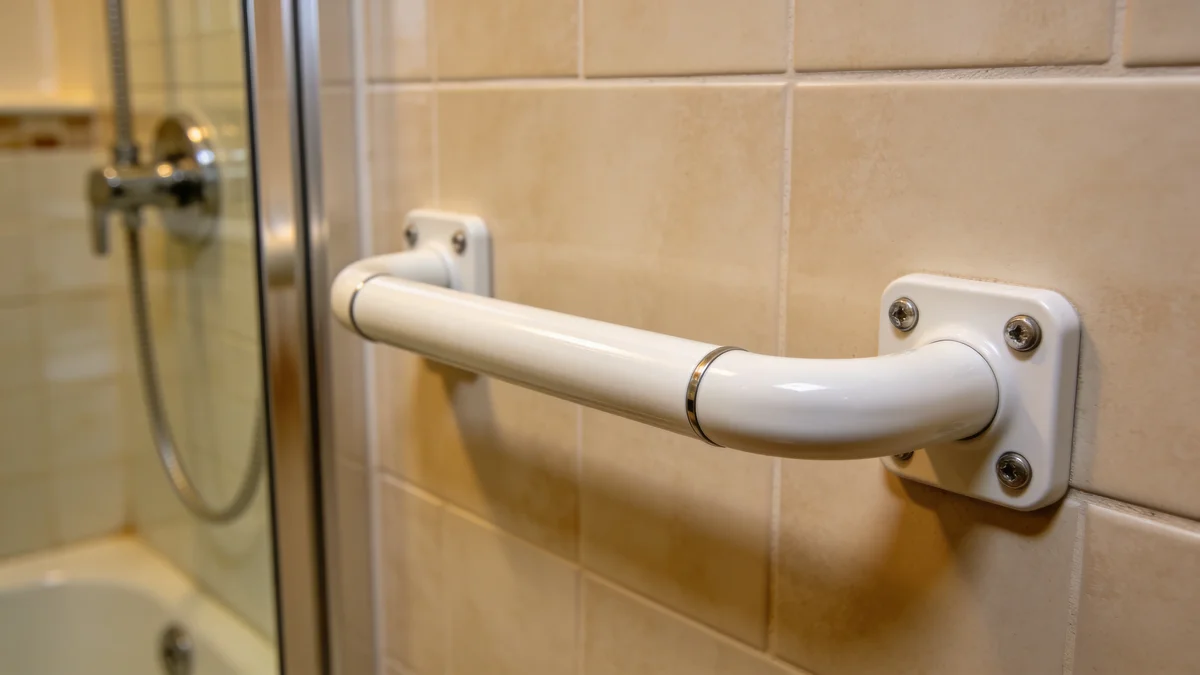

Article images are AI-generated illustrations. Some may include AI-generated people; they are illustrative and do not depict real caregivers, patients, experts, or FamilyCareWise contributors.

Where could a grab bar help your parent?

Start with what your parent needs help doing: lowering onto the toilet, standing up, stepping into the bathing area, or moving while bathing. Note the hand they use, where they can comfortably reach, and whether they use a walker, wheelchair or bathing seat. Those details belong in the placement discussion before anyone selects mounting holes.

MedlinePlus bathroom-safety guidance describes separate bars for getting into or out of the tub and rising from sitting. When the needed changes are unclear, it recommends asking a healthcare provider for an occupational or physical therapist referral. A therapist can assess movements and recommend support; an installer assesses how the chosen support can attach to the bathroom.

Beside the toilet

Consider where a hand can reach while sitting down and rising. A location that is easy to drill may still be too far back for that movement. The accessible adult toilet layout in the ADA Standards uses a bar on the nearest side wall and another on the rear wall. It does not require a horizontal bar on each side of every toilet.

Where support on the open side would help, a folding or swing-away bar is an option to discuss. The Access Board’s toilet-room guide explains that additional bars must avoid interfering with required bars or clear floor space and need proper securing. The proposed model, mounting location and transfer space all need assessment.

At the shower or tub entry

Plan entry support where your parent can reach it before stepping over a tub rim or shower threshold. MedlinePlus describes vertical or horizontal wall-secured bars, rather than diagonal bars. A vertical entry bar may fit the movement, but shoulder height is not a placement rule for every person. A shower with no threshold may still need support if entry or standing is difficult.

Inside the shower or tub

Include the places your parent stands, turns or rises from a bathing seat. The longest wall is not automatically the useful location. Shower configuration and a seat change what is within reach. Avoid asking an unsteady parent to demonstrate an unsupported transfer to choose a position; an assessment can address that movement.

A bathtub can need support at different levels. The accessible bathtub standards include a lower back-wall bar 8 to 10 inches above the tub rim, with layouts that differ according to the seat configuration. The standard’s higher horizontal bars generally use the separate 33-to-36-inch floor measurement. A transfer bench changes the seated movement and reach, so seat height alone doesn’t settle placement. Our guide to transfer aids and gait belts explains related transfer considerations.

Why include the toilet in the discussion?

A CDC study of 2008 bathroom injuries, published in 2011, estimated 234,094 unintentional, nonfatal injuries treated in U.S. emergency departments among people aged 15 and older. Falls accounted for 81.1 percent. Bathrooms in any setting were included; these are not current annual figures for older adults’ homes.

Among injured people aged 85 and older, 51.7 percent of injuries occurred on or near the toilet and 38.9 percent in or around the tub or shower. The toilet injury rate was 266.6 per 100,000 people in that age group, compared with 4.1 among ages 15 to 24. These are age-specific rates. The finding gives a reason to consider toilet support alongside bathing support, but it cannot choose the first bar for your parent.

The same study grouped 37.3 percent of injuries with bathing, showering or getting out; 14.1 percent with toilet activities; and 2.2 percent with getting into a tub or shower. Those categories do not establish that most bathroom falls occur during transfers, or explain why one activity had fewer injuries.

Which dimensions and features matter?

ADA measurements can help frame a conversation about placement and products. They are accessibility requirements for covered facilities, not universal instructions for a private bathroom. The Justice Department’s Title III guidance excludes a home used exclusively as a residence; portions used as a public accommodation can be covered. Other applicable housing or local requirements still need checking.

The complete grab-bar standards also address surrounding clearance, surfaces and fittings. For buying, compare usable grip, bar length, mounting-point spacing, intended wet-area use and cleaning instructions. Ask about grip difficulty, including weakness or arthritis, during the individual assessment rather than assuming a textured finish solves it.

Can a grab bar be installed without a stud?

Manufacturer-approved hollow-wall systems can provide a no-stud mounting option for a grab bar. Compatibility depends on the specific bar, mounting system and wall at every mounting point. Stud mounting or added reinforcement may also be possible. An installer can work through the available methods after the useful position has been identified.

Tile doesn’t show the supporting wall, its condition or the available cavity. The installer’s assessment covers the material and thickness behind the finish, mounting-point spacing, and hidden plumbing, wiring or other obstructions. An advertised 250-pound toggle-bolt rating can’t answer those compatibility questions.

A manufacturer-specific no-stud example

The Moen SMA1000 SecureMount specification lists these approved substrates: ½- or ⅝-inch drywall, including drywall with tile or marble, and ⅛- or ¼-inch fiberglass tub surrounds. It requires 3½ inches of space behind the wall and limits use to people weighing no more than 300 pounds when securely installed in approved substrates.

The Moen SMA1000 installation manual limits multiple wall layers to 1½ inches total. It excludes weakened or damaged substrates and curved surfaces. Apply those limits together with the listed substrates, rear cavity and user-weight limit. A thicker wall isn’t automatically approved for this product, and another anchor requires its own instructions.

What should the installer check and hand over?

Bring the placement needs and product instructions to an installer experienced with grab bars and the bathroom’s wall construction. Ask for an explanation of how each mounting point will be supported. A therapist’s movement assessment and an installer’s structural assessment answer different questions.

1. Confirm the useful position. Record the movement the bar will support, orientation, length, height measurement and reach from the toilet or bathing seat. If the wall cannot support that location as planned, revisit the mounting system or layout rather than moving the bar beyond usable reach.
2. Identify the complete product combination. Keep the bar and mounting-system model numbers, user limits and installation instructions. Confirm compatibility and the specified fasteners for the chosen method; avoid substituting a generic anchor based only on its advertised rating.
3. Document the wall at every mounting point. Ask what material, thickness, condition and rear clearance were found, whether studs or reinforcement are used, and how hidden plumbing or wiring was checked. The Moen manual specifically calls for locating studs and checking obstructions, including adhesive or ribbing in some surrounds.
4. Resolve installation details before drilling. Ask which manufacturer instructions govern the holes, fasteners, mounting plates and any sealing. The Moen manual specifies silicone for gaps on uneven surfaces and prohibits modifying its product. Those directions do not establish a universal drilling or sealing recipe for other products.
5. Get the completion and care instructions. Ask what checks the manufacturer requires before use, what periodic checks are needed, and whom to contact about movement, damaged parts or repairs. Keep that information with the installation record. Moen calls for periodic checks that screws remain securely fastened to the mounting plate.

A Moen SMA1000 installation record would include the measured wall layers and rear cavity, approved substrate, compatible bar and anchor models, and how the installer resolved obstructions. “Used heavy-duty bolts” leaves the compatibility questions unanswered. A home pull test can’t certify the structural requirement.

Which substitutes and maintenance issues need attention?

Drive’s rotating suction-cup grab bar is designed for balance assistance. The instructions prohibit using it to support body weight or to push or pull yourself, and require an attachment check before each use. Drive recommends a traditional permanently mounted bar for those weight-bearing or pushing-and-pulling tasks. Waiting for installation doesn’t change the suction model’s permitted use.

An ordinary towel rack is not a substitute: MedlinePlus warns against using towel racks for body-weight support. A product combining towel storage with a grab bar needs to be designed for grab-bar use and installed under its own instructions.

Follow the installed product’s inspection and cleaning directions. If a bar or mounting plate becomes loose, moves or shows damage, stop relying on it and contact the installer or manufacturer about assessment and repair. Pulling harder or asking your parent to load it won’t establish that it is sound.

Grab bars are one part of the bathroom plan. Our bathroom-safety guide for elderly parents covers flooring, seating and lighting. For families considering a way to request help, see what to look for in a medical alert device and our comparison of medical alert systems. Device choice also involves whether your parent can reach and use it and how it connects.
